Used Zoomlion Used Truck Cranes QY150V633 Second Hand Truck Mobile Crane

Used Zoomlion Truck Crane Zoomlion QY150V633 Second Hand Truck Mobile Crane

Production Details:

• Zoomlion QY150V633 truck crane is a high-performance and high-reliability crane designed and developed by our company in order to meet the market demand, using the technology of designing and manufacturing mobile cranes for many years and combining with international advanced technology.
• This product is a high-tech product with a high concentration of electromechanical hydraulic systems. It will be active in various fields of my country's economic construction with its excellent handling performance, excellent fretting performance, huge lifting capacity and extraordinary lifting height.
• This product is suitable for lifting operations and installation projects in chemical, mining, oil fields, ports, construction sites and other places. This product is not suitable for areas with strong electromagnetic waves.
• This product is a full-slewing, telescopic boom type, electro-hydraulic proportional control truck crane. It adopts the company's self-made full-drive six-axle special chassis, with wide field of vision, luxurious and comfortable decoration, three-axle drive and four-axle steering.


Product Parameters:

Item		Value	Remarks
Working performance	Max. rated total lifting weight (kg)	150000
	Max. load moment of the basic boom (kN.m)	5292	6m range
	Max. load moment of the longest main boom (kN.m)	2264	22m range
	Max. lifting height of the basic boom (m)	13.5
	Max. lifting height of main boom (m)	60	The deformation of the boom is not considered, and the value in brackets is the value of the extension arm
	Max. lifting height of jib (m)	78.4 / (86)
Working speeds	Max. speed of single rope (main winch) (m/min)	110	At fifth layer
	Max. speed of single rope (auxiliary winch) (m/min)	75	At third layer
	Boom derricking up time (s)	78
	Boom telescoping out time (min)	12
	Max. rotation speed (r/min)	1.5
Driving parameters	Max. driving speed (km/h)	72
	Max. gradeability (%)	40
	Min. turning diameter (m)	≤24
	Min. ground clearance (mm)	280
	Exhaust Pollutant Emission Value and Smoke Level Limit	Comply with the standard	GB3847-2005 GB17691-2005(Euro Ⅲ)
	Fuel consumption per 100 kilometers (L)	85
Weight parameters	Deadweight in traveling condition(kg)	54900
	Complete vehicle kerb mass (kg)	54705
	Ⅰ, Ⅱ, Ⅲ axle load (kg)	8700/8700/8700/
	Ⅳ, Ⅴ, Ⅵ axle load (kg)	20800(Dual axis)/8000
Dimensions	Dimensions (L×W×H) (mm)	14990×3000×3950
	Longitudinal distance of outriggers (m)	7.04
	Outrigger lateral distance (m)	8.5(Full extension), 6.5(Half extension)
	Main arm length (m)	13~59
	Main boom elevation angle (°)	-1.5～82
	Jib length (m)	11 ,18.6
	Jib + extension arm (m)	26.6
	Offset (°)	0 ,15, 30

60m Used Truck Cranes

Zoomlion Used Truck Cranes

QY150V633

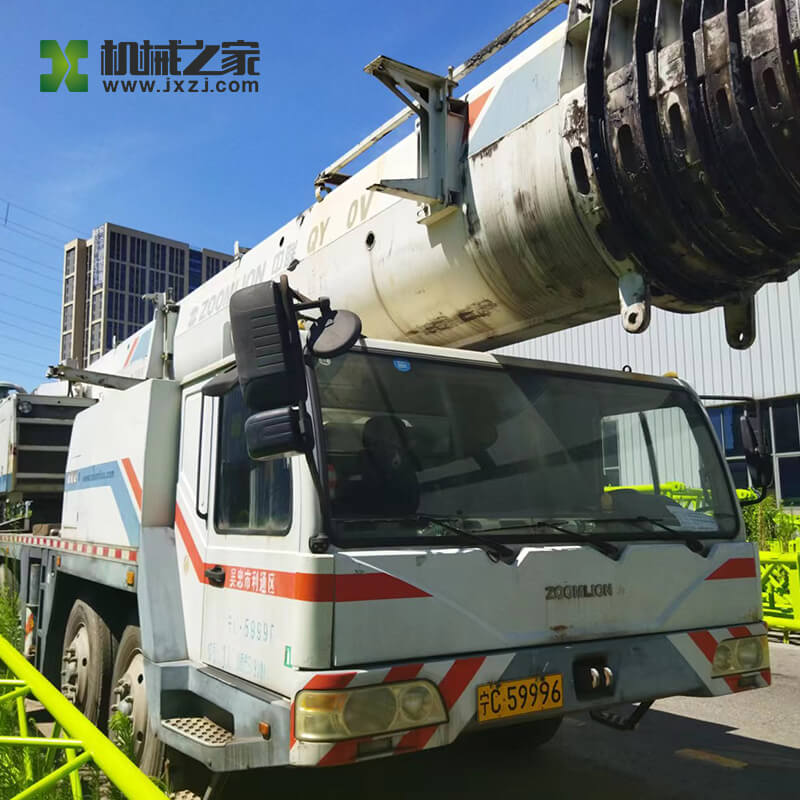

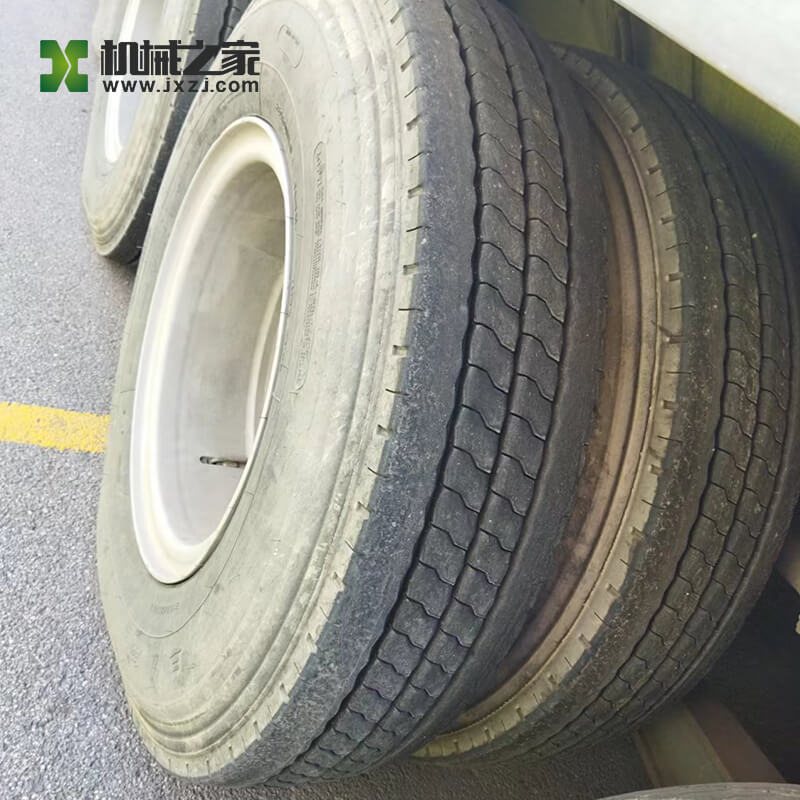

Used Zoomlion Used Truck Cranes QY150V633 Second Hand Truck Mobile Crane Images
