Used Truck Crane XCMG JQZ130 Second Hand Truck Mobile Crane

Name: Used Truck Crane XCMG JQZ130 Second Hand Truck Mobile Crane
Brand: XCMG
Price: 1 USD

Buy cheap Used Truck Crane XCMG JQZ130 Second Hand Truck Mobile Crane product

Brand Name : XCMG

Model Number : JQZ130

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10PCS/M

Delivery Time : 5-7 Days

Packaging Details : Bulk

Condition : Used

Maximum Lifting Height : 13～58 M

Maximum Lifting Weight : 130ton

Axle Number : 6

Jib : 3 Section

production date : 2009

Contact Now

Used Truck Crane XCMG JQZ130 Second Hand Truck Mobile Crane

Production Details:

Model NO.	XZJ5552JQZ130	Boom Type	Telescopic
Max. Rated Lifting Capacity	130000 kg	Max. Lifting Height of Jib	61m
Max Gradeability	40%	Working hours	90000h
Transport Package	Compliant with export packaging requirements	Specification	15785×3000×3995(mm)
Trademark	XCMG	Place of Origin	China
HS Code		Supply Capacity	1 Units Per Month

This crane is a special work vehicle, with forward/backward extension: 1775mm/255mm (corresponding to a vehicle length of 15675mm), 1925mm/255mm (corresponding to a vehicle length of 15825mm), and the net power of the MC13.48-60 engine is 353kW.

The maximum height from the ground is 530mm, and the rear protection is replaced by the fixed outrigger box, and the height from the ground is 500mm. Remove the lifting hook, counterweight and single pulley at the arm end, jib and bracket, auxiliary Hoisting mechanism (including wire rope and rigging), spare tire and its bracket, counterweight bracket, foot plate, counterweight fixing device (removed when the vehicle length is 15675mm) or main hoisting wire rope (removed when the vehicle length is 15825mm). ABS control Model: 4460037130, CM6XL-6S/6M. Manufacturer: WABCO Automotive Control System (China) Co., Ltd., Guangzhou Kemi Automotive Electronic Control Technology Co., Ltd. Optional cab with different lamps and mirrors.

Product Parameters:

Brand		XCMG			Type		All Terrain Cranes
Rated quality					Total mass		54990
Vehicle weight		54795			Fuel type		Diesel
Emissions according to standards		GB17691-2005 Euro Ⅴ			Number of axes		5
Wheelbase		2650+1650+2900+1650		Axle load				11490/12000/12000/9900/9600
Number of spring pieces		-/-/-/-/-		Number of tires				10
Tire specifications		385/95R25 170F		approaching the departure angle				19/16
Front suspension rear suspension		2660/2135		Front track				2590
Rear track		2590/2590/2590/2590		identification code				LXGDPA55×××××××××
Vehicle length		15675,15825		vehicle width				3000
Vehicle height		3980,3995		Cargo length
Cargo width				Cargo height
Top speed		80		Rated passenger
The number of occupants in the cab		3		Steering Type				Steering wheel
Total mass of quasi-trailer				Carrier Mass Utilization Coefficient
Maximum load-carrying mass of semi-trailer saddle				Company Name				XCMG
Wheelbase		XZJ5552JQZ130 Class II			Chassis 2
Chassis 3					Chassis 4
Engine model	Engine manufacturer		Engine Brand			Displacement			Power
MC13.48-50	Sino					12419			356

Used Truck Crane XCMG JQZ130 Second Hand Truck Mobile Crane

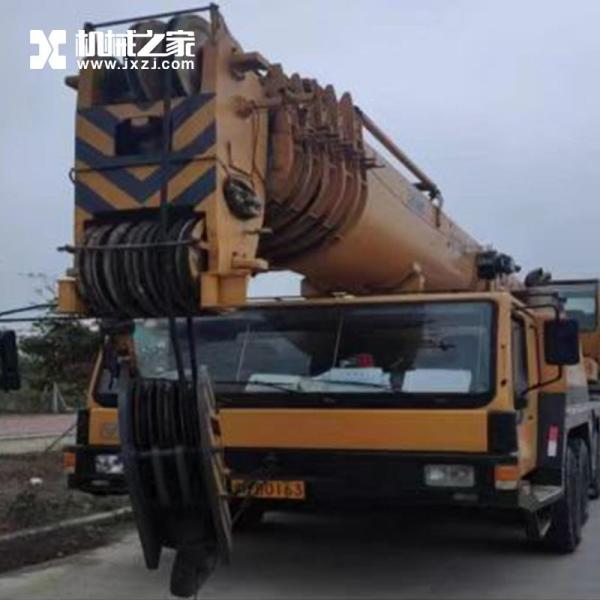

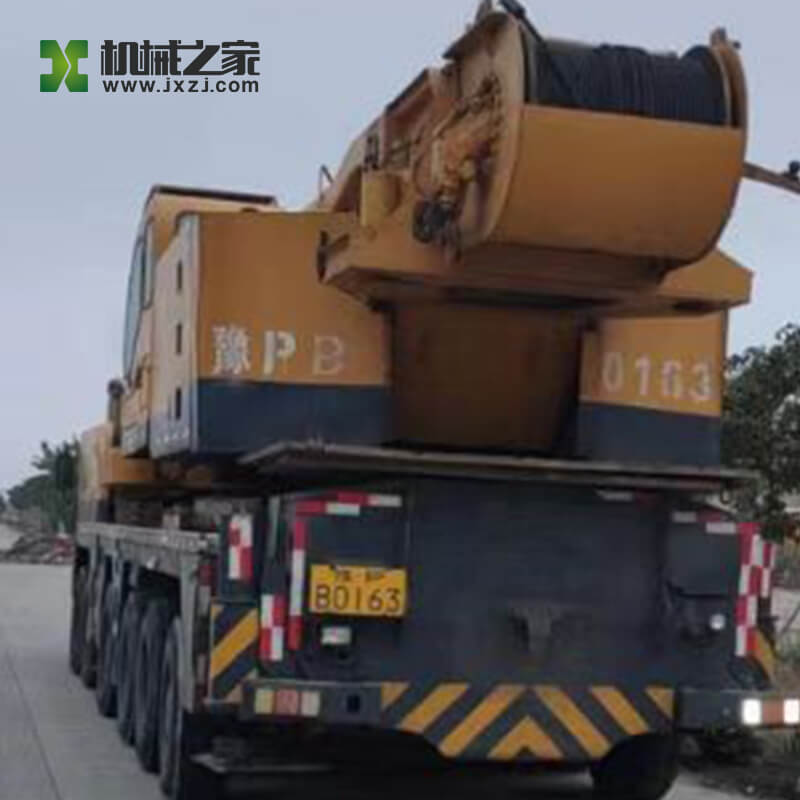

Used Truck Crane XCMG JQZ130 Second Hand Truck Mobile Crane Images
